Cross Realm setup between HDP3 and CDP7

Posted Mar 16, 2022 2022-03-16T10:12:00+05:30 by Vikas Srivastava

Cross Realm

Cross realm is required when we need to setup connectivity between two secure clusters specially kerberos. In case of sidecar upgrade, Migration of data is required from one cluster to another and we need to do the cross realm setup to make it happen.

Lets take two cluster with different realms like below

HDP cluster details

  • Realm name: HWX.COM
  • KDC server: c2110-node1.squadron.support.hortonworks.com
  • admin_server = c2110-node1.squadron.support.hortonworks.com
  • default_domain = support.hortonworks.com

CDP Cluster details

  • Realm name: CLDR.COM
  • kdc server = ccycloud-1.cdptest.root.hwx.site
  • admin_server = ccycloud-1.cdptest.root.hwx.site
  • default_domain = root.hwx.site

Steps:

Update /etc/hosts

  • Make sure are all hosts from both cluster should be able to ping each other
  • you can add host from different cluster to each other, like HDP nodes into CDP /etc/hosts file and viceversa.

Krbtgt principal creation

  • Create required principals on both clusters: password and encryption should be same on both the cluster.

CDP Cluster

1
2
3

kadmin.local -e aes256-cts-hmac-sha1-96,aes128-cts-hmac-sha1-96
addprinc -pw hadoop krbtgt/CLDR.COM@HWX.COM
addprinc -pw hadoop krbtgt/HWX.COM@CLDR.COM

HDP Cluster

1
2
3

kadmin.local -e aes256-cts-hmac-sha1-96,aes128-cts-hmac-sha1-96
addprinc -pw hadoop krbtgt/CLDR.COM@HWX.COM
addprinc -pw hadoop krbtgt/HWX.COM@CLDR.COM

Update the auth to local rules

Update hadoop local to auth rules to match other cluster principles and to map accrodingly Add following rules in CORE_SETTINGS-1 / hadoop config–>Additional Rules to Map Kerberos Principals to Short Names

CDP Cluster

1
2
3
4

RULE:[1:$1@$0](^.*@HWX.COM$)s/^(.*)@HWX.COM$/$1/g
RULE:[2:$1@$0](^.*@HWX.COM$)s/^(.*)@HWX.COM$/$1/g
DEFAULT
{DEFAULT_RULES}

HDP Cluster

1
2
3

RULE:[1:$1@$0](^.*@CLDR.COM$)s/^(.*)@CLDR.COM$/$1/g
RULE:[2:$1@$0](^.*@CLDR.COM$)s/^(.*)@CLDR.COM$/$1/g
DEFAULT

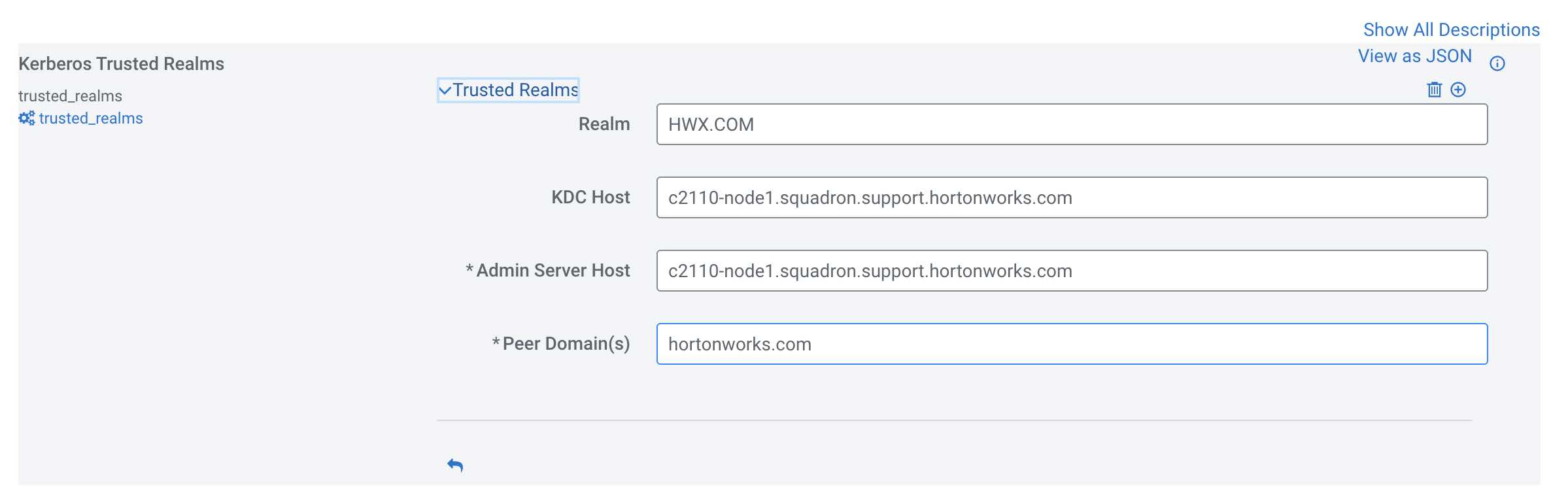

Add trusted realm in CDP cluster


restart the services.

Update krb-conf template in HDP cluster

update the below line if doesnt exists at kerberos -> Advance Krb-conf -> krb-conf template

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

[libdefaults]
  renew_lifetime = 7d
  forwardable = true
  default_realm =
  ticket_lifetime = 24h
  dns_lookup_realm = false
  dns_lookup_kdc = false
  default_ccache_name = /tmp/krb5cc_%{uid}
  #default_tgs_enctypes =
  #default_tkt_enctypes =

   root.hwx.site = CLDR.COM
[logging]
  default = FILE:/var/log/krb5kdc.log
  admin_server = FILE:/var/log/kadmind.log
  kdc = FILE:/var/log/krb5kdc.log

{# Append additional realm declarations below #}
  CLDR.COM = {
    kdc = ccycloud-1.cdptest.root.hwx.site
    admin_server = ccycloud-1.cdptest.root.hwx.site
    default_domain = root.hwx.site
  }

[capaths]
 HWX.COM = {
   CLDR.COM = .
}

Restart the service and regenerate the keytabs.

validate the krb5.conf on both the clusters

HDP Cluster

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

[libdefaults]
  renew_lifetime = 7d
  forwardable = true
  default_realm = HWX.COM
  ticket_lifetime = 24h
  dns_lookup_realm = false
  dns_lookup_kdc = false
  default_ccache_name = /tmp/krb5cc_%{uid}

[domain_realm]
  hortonworks.com = HWX.COM

   root.hwx.site = CLDR.COM
[logging]
  default = FILE:/var/log/krb5kdc.log
  admin_server = FILE:/var/log/kadmind.log
  kdc = FILE:/var/log/krb5kdc.log

[realms]
  HWX.COM = {
    admin_server = c2110-node1.squadron.support.hortonworks.com
    kdc = c2110-node1.squadron.support.hortonworks.com
  }
  CLDR.COM = {
    kdc = ccycloud-1.cdptest.root.hwx.site
    admin_server = ccycloud-1.cdptest.root.hwx.site
    default_domain = root.hwx.site
  }
[capaths]
 HWX.COM = {
   CLDR.COM = .
}

CDP Cluster

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

[libdefaults]
  default_realm = CLDR.COM
  dns_lookup_kdc = false
  dns_lookup_realm = false
  ticket_lifetime = 86400
  renew_lifetime = 604800
  forwardable = true
  default_tgs_enctypes = rc4-hmac aes128-cts
  default_tkt_enctypes = rc4-hmac aes128-cts
  permitted_enctypes = rc4-hmac aes128-cts
  udp_preference_limit = 1
  kdc_timeout = 3000
[realms]
CLDR.COM = {
    kdc = ccycloud-1.cdptest.root.hwx.site
    admin_server = ccycloud-1.cdptest.root.hwx.site
    default_domain = root.hwx.site
}
HWX.COM = {
    kdc = c2110-node1.squadron.support.hortonworks.com
    admin_server = c2110-node1.squadron.support.hortonworks.com
    default_domain = hortonworks.com
}
[domain_realm]
root.hwx.site = CLDR.COM
hortonworks.com = HWX.COM

[capaths]
 CLDR.COM = {
   HWX.COM = .
}

Verify to test the auth to local rules

Verify hadoop local to auth rules

HDP Cluster

1
2

[hdfs@ccycloud-1 ~]$ hadoop org.apache.hadoop.security.HadoopKerberosName hdfs/ccycloud-1.cdpdcdaas.root.hwx.site@HWX.COM
Name: hdfs/ccycloud-1.cdpdcdaas.root.hwx.site@HWX.COM to hdfs

CDP Cluster

1
2

[hdfs@ccycloud-3 ~]$ hadoop org.apache.hadoop.security.HadoopKerberosName hdfs/ccycloud-1.cdpdc.root.hwx.site@CLDR.COM
Name: hdfs/ccycloud-1.cdpdc.root.hwx.site@CLDR.COM to hdfs

Verify the Access to other cluster

verify if you can run test queries from cluster A to cluster B and vice versa

To debug just add

1
2

export HADOOP_CLIENT_OPTS="-Dsun.security.krb5.debug=true"
export HADOOP_ROOT_LOGGER=DEBUG,console

Running hdfs commands in HDP cluster from CDP Cluster

kinit the user and run the below commands

1
2
3
4
5
6
7
8
9
10
11
12
13

[hdfs@c2110-node1 ~]$ hdfs dfs -ls hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user
Found 11 items
drwxr-xr-x   - hdfs           supergroup              0 2020-08-19 05:30 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/hdfs
drwxrwxrwx   - mapred         hadoop                  0 2020-07-31 03:37 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/history
drwxrwxr-t   - hive           hive                    0 2020-08-01 04:34 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/hive
drwxrwxr-x   - hue            hue                     0 2020-07-31 03:37 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/hue
drwxr-xr-x   - ingestion_user ingestion_user          0 2020-09-17 01:56 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/ingestion_user
drwxr-xr-x   - nifi           nifi                    0 2020-08-02 08:46 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/nifi
drwxrwxr-x   - oozie          oozie                   0 2020-09-20 21:14 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/oozie
drwxr-x--x   - spark          spark                   0 2020-07-31 03:35 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/spark
drwxr-xr-x   - hdfs           supergroup              0 2020-07-31 03:35 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/tez
drwxr-xr-x   - hdfs           supergroup              0 2020-09-22 11:44 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/vinod
drwxr-xr-x   - hdfs           supergroup              0 2020-07-31 03:36 hdfs://ccycloud-1.cdpdcdaas.root.hwx.site/user/yarn

Running hdfs commands in CDP cluster from HDP Cluster

kinit the user and run the below commands

1
2
3
4
5
6
7
8
9
10

[hdfs@ccycloud-3 ~]$ hdfs dfs -ls hdfs://c2110-node1.squadron.support.hortonworks.com/user
Found 8 items
drwxrwxrwx   - mapred hadoop              0 2020-09-11 10:03 hdfs://c2110-node1.squadron.support.hortonworks.com/user/history
drwxrwxr-t   - hive   hive                0 2020-09-21 01:35 hdfs://c2110-node1.squadron.support.hortonworks.com/user/hive
drwxrwxr-x   - hue    hue                 0 2020-09-11 10:08 hdfs://c2110-node1.squadron.support.hortonworks.com/user/hue
drwxrwxr-x   - impala impala              0 2020-09-15 09:43 hdfs://c2110-node1.squadron.support.hortonworks.com/user/impala
drwxrwxr-x   - oozie  oozie               0 2020-09-11 10:01 hdfs://c2110-node1.squadron.support.hortonworks.com/user/oozie
drwxr-x--x   - spark  spark               0 2020-09-11 10:01 hdfs://c2110-node1.squadron.support.hortonworks.com/user/spark
drwxr-xr-x   - hdfs   supergroup          0 2020-09-11 10:01 hdfs://c2110-node1.squadron.support.hortonworks.com/user/tez
drwxr-xr-x   - hdfs   supergroup          0 2020-09-11 10:02 hdfs://c2110-node1.squadron.support.hortonworks.com/user/yarn

You are all set to do the data migration.
